Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT feed - started a week or so ago

  • To: Pete Pokrandt <poker@xxxxxxxxxxxx>
  • Subject: Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT feed - started a week or so ago
  • From: Gerry Creager - NOAA Affiliate <gerry.creager@xxxxxxxx>
  • Date: Tue, 16 Apr 2019 12:59:27 -0500
Pete, Clarissa,

This is a poster-child example for use of perfSonar to look at latency,
jitter, congestion. The whole picture from perfSonar will be much clearer
than a simple traceroute.

gerry

On Tue, Apr 16, 2019 at 11:00 AM Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:

> All,
>
> Just keeping this in the foreground.
>
> CONDUIT lags continue to be very large compared to what they were previous
> to whatever changed back in February. Prior to that, we rarely saw lags
> more than ~300s. Now they are routinely 1500-2000s at UW-Madison and Penn
> State, and  over 3000s at Unidata - they appear to be on the edge of losing
> data. This does not bode well with all of the IDP applications failing back
> over to CP today..
>
> Can we send you some traceroutes and you back to us to maybe try to
> isolate where in the network this is happening? It feels like congestion or
> a bad route somewhere - the lags seem to be worse on weekdays than weekends
> if that helps at all.
>

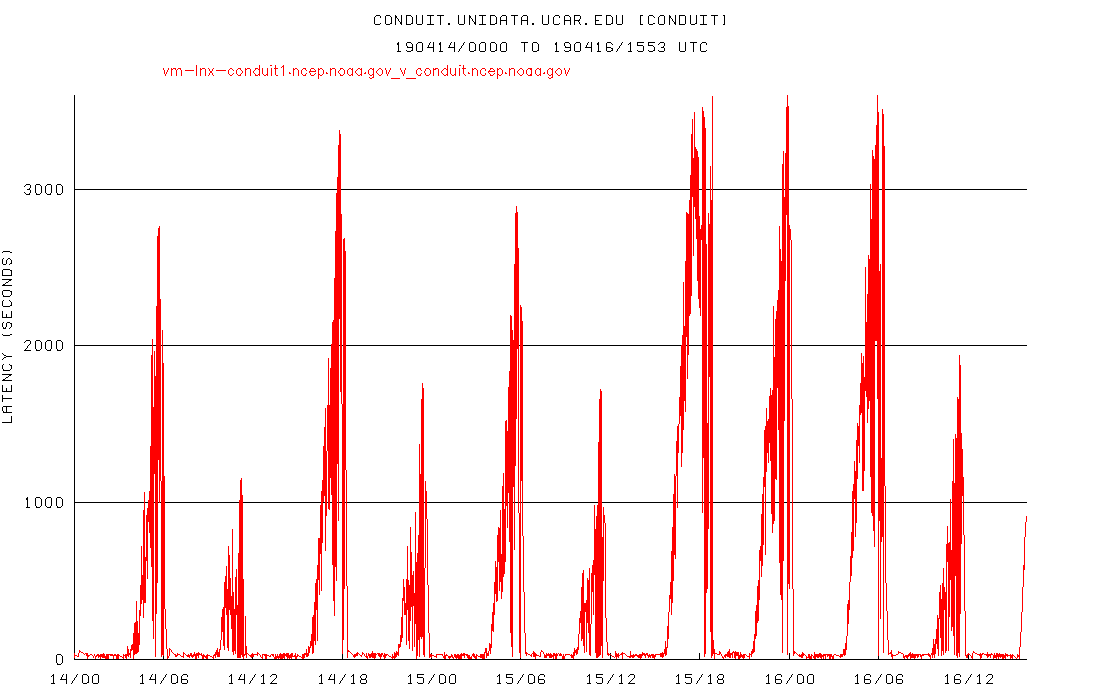

> Here are the current CONDUIT lags to UW-Madison, Penn State and Unidata.
>
>
>
>
>
>
>
>
>
>
>
> Pete
>
>
>
> <http://www.weather.com/tv/shows/wx-geeks/video/the-incredible-shrinking-cold-pool>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Dustin Sheffler - NOAA Federal <dustin.sheffler@xxxxxxxx>
> *Sent:* Tuesday, April 9, 2019 12:52 PM
> *To:* Mike Zuranski
> *Cc:* conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow; Derek VanPelt -
> NOAA Affiliate; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT
> feed - started a week or so ago
>
> Hi Mike,
>
> Thanks for the feedback on NOMADS. We recently found a slowness issue when
> NOMADS is running out of our Boulder data center that is being worked on by
> our teams now that NOMADS is live out of the College Park data center. It's
> hard sometimes to quantify whether slowness issues that are only being
> reported by a handful of users is a result of something wrong in our data
> center, a bad network path between a customer (possibly just from a
> particular region of the country) and our data center, a local issue on the
> customers' end, or any other reason that might cause slowness.
>
> Conduit is *only* ever run from our College Park data center. It's
> slowness is not tied into the Boulder NOMADS issue, but it does seem to be
> at least a little bit tied to which of our data centers NOMADS is running
> out of. When NOMADS is in Boulder along with the majority of our other NCEP
> applications, the strain on the College Park data center is minimal and
> Conduit appears to be running better as a result. When NOMADS runs in
> College Park (as it has since late yesterday) there is more strain on the
> data center and Conduit appears (based on provided user graphs) to run a
> bit worse around peak model times as a result. These are just my
> observations and we are still investigating what may have changed that
> caused the Conduit latencies to appear in the first place so that we can
> resolve this potential constraint.
>
> -Dustin
>
> On Tue, Apr 9, 2019 at 4:28 PM Mike Zuranski <zuranski@xxxxxxxxxxxxxxx>
> wrote:
>
> Hi everyone,
>
> I've avoided jumping into this conversation since I don't deal much with
> Conduit these days, but Derek just mentioned something that I do have some
> applicable feedback on...
>
> > Two items happened last night.  1. NOMADS was moved back to College
> Park...
>
> We get nearly all of our model data via NOMADS.  When it switched to
> Boulder last week we saw a significant drop in download speeds, down to a
> couple hundred KB/s or slower.  Starting last night, we're back to speeds
> on the order of MB/s or tens of MB/s.  Switching back to College Park seems
> to confirm for me something about routing from Boulder was responsible.
> But again this was all on NOMADS, not sure if it's related to happenings on
> Conduit.
>
> When I noticed this last week I sent an email to sdm@xxxxxxxx including a
> traceroute taken at the time, let me know if you'd like me to find that and
> pass it along here or someplace else.
>
> -Mike
>
> ======================
> Mike Zuranski
> Meteorology Support Analyst
> College of DuPage - Nexlab
> Weather.cod.edu
> ======================
>
>
> On Tue, Apr 9, 2019 at 10:51 AM Person, Arthur A. <aap1@xxxxxxx> wrote:
>
> Derek,
>
>
> Do we know what change might have been made around February 10th when the
> CONDUIT problems first started happening?  Prior to that time, the CONDUIT
> feed had been very crisp for a long period of time.
>
>
> Thanks...            Art
>
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* Derek VanPelt - NOAA Affiliate <derek.vanpelt@xxxxxxxx>
> *Sent:* Tuesday, April 9, 2019 11:34 AM
> *To:* Holly Uhlenhake - NOAA Federal
> *Cc:* Carissa Klemmer - NOAA Federal; Person, Arthur A.; Pete Pokrandt;
> _NCEP.List.pmb-dataflow; conduit@xxxxxxxxxxxxxxxx;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] Large lags on CONDUIT feed - started a week or
> so ago
>
> Hi all,
>
> Two items happened last night.
>
> 1.   NOMADS was moved back to College Park, which means there was a lot
> more traffic going out which will have effect on the Conduit latencies.  We
> do not have a full load from the COllege Park Servers as many of the other
> applications are still running from Boulder, but NOMADS will certainly
> increase overall load.
>
> 2.   As Holly said, there were further issues delaying and changing the
> timing of the model output yesterday afternoon/evening.  I will be watching
> from our end, and monitoring the Unidata 48 hour graph (thank you for the
> link) throughout the day,
>
> Please let us know if you have questions or more information to help us
> analyse what you are seeing.
>
> Thank you,
>
> Derek
>
>
> On Tue, Apr 9, 2019 at 6:50 AM Holly Uhlenhake - NOAA Federal <
> holly.uhlenhake@xxxxxxxx> wrote:
>
> Hi Pete,
>
> We also had an issue on the supercomputer yesterday where several models
> going to conduit would have been stacked on top of each other instead of
> coming out in a more spread out fashion.  It's not inconceivable that
> conduit could have backed up working through the abnormally large glut of
> grib messages.    Are things better this morning at all?
>
> Thanks,
> Holly
>
> On Tue, Apr 9, 2019 at 12:37 AM Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> Something changed starting with today's 18 UTC model cycle, and our lags
> shot up to over 3600 seconds, where we started losing data. They are
> growing again now with the 00 UTC cycle as well. PSU and Unidata CONDUIT
> stats show similar abnormally large lags.
>
> FYI.
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262069725&sdata=ZmTVJ%2FCeylvBSnE4bfbvXoZEMi1qTxGIsV0ePOJmr0A%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* Person, Arthur A. <aap1@xxxxxxx>
> *Sent:* Friday, April 5, 2019 2:10 PM
> *To:* Carissa Klemmer - NOAA Federal
> *Cc:* Pete Pokrandt; Derek VanPelt - NOAA Affiliate; Gilbert Sebenste;
> conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: Large lags on CONDUIT feed - started a week or so ago
>
>
> Carissa,
>
>
> The Boulder connection is definitely performing very well for CONDUIT.
> Although there have been a couple of little blips (~ 120 seconds) since
> yesterday, overall the performance is superb.  I don't think it's quite as
> clean as prior to the ~February 10th date when the D.C. connection went
> bad, but it's still excellent performance.  Here's our graph now with a
> single connection (no splits):
>
>
> My next question is:  Will CONDUIT stay pointing at Boulder until D.C. is
> fixed, or might you be required to switch back to D.C. at some point before
> that?
>
>
> Thanks...               Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* Carissa Klemmer - NOAA Federal <carissa.l.klemmer@xxxxxxxx>
> *Sent:* Thursday, April 4, 2019 6:22 PM
> *To:* Person, Arthur A.
> *Cc:* Pete Pokrandt; Derek VanPelt - NOAA Affiliate; Gilbert Sebenste;
> conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: Large lags on CONDUIT feed - started a week or so ago
>
> Catching up here.
>
> Derek,
> Do we have traceroutes from all users? Does anything in VCenter show any
> system resource constraints?
>
> On Thursday, April 4, 2019, Person, Arthur A. <aap1@xxxxxxx> wrote:
>
> Yeh, definitely looks "blipier" starting around 7Z this morning, but
> nothing like it was before.  And all last night was clean.  Here's our
> graph with a 2-way split, a huge improvement over what it was before the
> switch to Boulder:
>
>
>
> Agree with Pete that this morning's data probably isn't a good test since
> there were other factors.  Since this seems so much better, I'm going to
> try switching to no split as an experiment and see how it holds up.
>
>
>                         Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* Pete Pokrandt <poker@xxxxxxxxxxxx>
> *Sent:* Thursday, April 4, 2019 1:51 PM
> *To:* Derek VanPelt - NOAA Affiliate
> *Cc:* Person, Arthur A.; Gilbert Sebenste; Anne Myckow - NOAA Affiliate;
> conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [Ncep.list.pmb-dataflow] [conduit] Large lags on CONDUIT
> feed - started a week or so ago
>
> Ah, so perhaps not a good test.. I'll set it back to a 5-way split and see
> how it looks tomorrow.
>
> Thanks for the info,
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262079726&sdata=nfgLZrEi9nKlsx20RpNyyHQVunPIH3Bwu5t2gMnhFYI%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* Derek VanPelt - NOAA Affiliate <derek.vanpelt@xxxxxxxx>
> *Sent:* Thursday, April 4, 2019 12:38 PM
> *To:* Pete Pokrandt
> *Cc:* Person, Arthur A.; Gilbert Sebenste; Anne Myckow - NOAA Affiliate;
> conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [Ncep.list.pmb-dataflow] [conduit] Large lags on CONDUIT
> feed - started a week or so ago
>
> HI Pete -- we did have a separate issu hit the CONDUIT feed today.  We
> should be recovering now, but the backlog was sizeable.  If these numbers
> are not back to the baseline in the next hour or so please let us know.  We
> are also watching our queues and they are decreasing, but not as quickly as
> we had hoped.
>
> Thank you,
>
> Derek
>
> On Thu, Apr 4, 2019 at 1:26 PM 'Pete Pokrandt' via _NCEP list.pmb-dataflow
> <ncep.list.pmb-dataflow@xxxxxxxx> wrote:
>
> FYI - there is still a much larger lag for the 12 UTC run with a 5-way
> split compared to a 10-way split. It's better since everything else failed
> over to Boulder, but I'd venture to guess that's not the root of the
> problem.
>
>
>
> Prior to whatever is going on to cause this, I don'r recall ever seeing
> lags this large with a 5-way split. It looked much more like the left hand
> side of this graph, with small increases in lag with each 6 hourly model
> run cycle, but more like 100 seconds vs the ~900 that I got this morning.
>
> FYI I am going to change back to a 10 way split for now.
>
> Pete
>
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262079726&sdata=nfgLZrEi9nKlsx20RpNyyHQVunPIH3Bwu5t2gMnhFYI%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> *Sent:* Wednesday, April 3, 2019 4:57 PM
> *To:* Person, Arthur A.; Gilbert Sebenste; Anne Myckow - NOAA Affiliate
> *Cc:* conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT
> feed - started a week or so ago
>
> Sorry, was out this morning and just had a chance to look into this. I
> concur with Art and Gilbert that things appear to have gotten better
> starting with the failover of everything else to Boulder yesterday. I will
> also reconfigure to go back to a 5-way split (as opposed to the 10-way
> split that I've been using since this issue began) and keep an eye on
> tomorrow's 12 UTC model run cycle - if the lags go up, it usually happens
> worst during that cycle, shortly before 18 UTC each day.
>
> I'll report back tomorrow how it looks, or you can see at
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bidd.aos.wisc.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262089730&sdata=C0zwKdhnNi0Jpqteh%2B4yazfSjJHCj%2B9hSwE%2F1UOX29U%3D&reserved=0>
>
> Thanks,
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262099739&sdata=azCKUDriBN8O5WS3ytUMHYGjSEKvBQ483y%2FJPUjdIgQ%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Person, Arthur A. <aap1@xxxxxxx>
> *Sent:* Wednesday, April 3, 2019 4:04 PM
> *To:* Gilbert Sebenste; Anne Myckow - NOAA Affiliate
> *Cc:* conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT
> feed - started a week or so ago
>
>
> Anne,
>
>
> I'll hop back in the loop here... for some reason these replies started
> going into my junk file (bleh).  Anyway, I agree with Gilbert's
> assessment.  Things turned real clean around 12Z yesterday, looking at the
> graphs.  I usually look at flood.atmos.uiuc.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fflood.atmos.uiuc.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262099739&sdata=OEfEpm9%2BfxCxC5RQjY9wvKjsuLBaDymLq669BuMmyRE%3D&reserved=0>
> when there are problem as their connection always seems to be the
> cleanest.  If there are even small blips or ups and downs in their
> latencies, that usually means there's a network aberration somewhere that
> usually amplifies into hundreds or thousands of seconds at our site and
> elsewhere.  Looking at their graph now, you can see the blipiness up until
> 12Z yesterday, and then it's flat (except for the one spike around 16Z
> today which I would ignore):
>
>
>
> Our direct-connected site, which is using a 10-way split right now, also
> shows a return to calmness in the latencies:
>
>
> Prior to the recent latency jump, I did not use split requests and the
> reception had been stellar for quite some time.  It's my suspicion that
> this is a networking congestion issue somewhere close to the source since
> it seems to affect all downstream sites.  For that reason, I don't think
> solving this problem should necessarily involve upgrading your server
> software, but rather identifying what's jamming up the network near D.C.,
> and testing this by switching to Boulder was an excellent idea.  I will now
> try switching our system to a two-way split to see if this performance
> holds up with fewer pipes.  Thanks for your help and I'll let you know
> what I find out.
>
>
>                                  Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Gilbert Sebenste <gilbert@xxxxxxxxxxxxxxxx>
> *Sent:* Wednesday, April 3, 2019 4:07 PM
> *To:* Anne Myckow - NOAA Affiliate
> *Cc:* conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT
> feed - started a week or so ago
>
> Hello Anne,
>
> I'll jump in here as well. Consider the CONDUIT delays at UNIDATA:
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+conduit.unidata.ucar.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bconduit.unidata.ucar.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262109744&sdata=gTeKW1u6tq4bdO8jRpmrxYQYG%2BDwwNUZBCseIInuftQ%3D&reserved=0>
>
>
> And now, Wisconsin:
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bidd.aos.wisc.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262109744&sdata=7u4RkBCyKcWO16hQ9yieCa%2Bi2y%2BwhOWHtKPtI679dCI%3D&reserved=0>
>
>
> And finally, the University of Washington:
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+freshair1.atmos.washington.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bfreshair1.atmos.washington.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262119753&sdata=31845ZclhIciL%2F3nuo682EDU%2FEiJXjXogqUqOUzNji4%3D&reserved=0>
>
>
> All three of whom have direct feeds from you. Flipping over to Boulder
> definitely caused a major improvement. There was still a brief spike in
> delay, but much shorter and minimal
> compared to what it was.
>
> Gilbert
>
> On Wed, Apr 3, 2019 at 10:03 AM Anne Myckow - NOAA Affiliate <
> anne.myckow@xxxxxxxx> wrote:
>
> Hi Pete,
>
> As of yesterday we failed almost all of our applications to our site in
> Boulder (meaning away from CONDUIT). Have you noticed an improvement in
> your speeds since yesterday afternoon? If so this will give us a clue that
> maybe there's something interfering on our side that isn't specifically
> CONDUIT, but another app that might be causing congestion. (And if it's the
> same then that's a clue in the other direction.)
>
> Thanks,
> Anne
>
> On Mon, Apr 1, 2019 at 3:24 PM Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> The lag here at UW-Madison was up to 1200 seconds today, and that's with a
> 10-way split feed. Whatever is causing the issue has definitely not been
> resolved, and historically is worse during the work week than on the
> weekends. If that helps at all.
>
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262129771&sdata=bVTgXqm4bybswNIYttm3NeKaN5prjmUDwOpFXphUMCw%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* Anne Myckow - NOAA Affiliate <anne.myckow@xxxxxxxx>
> *Sent:* Thursday, March 28, 2019 4:28 PM
> *To:* Person, Arthur A.
> *Cc:* Carissa Klemmer - NOAA Federal; Pete Pokrandt;
> _NCEP.List.pmb-dataflow; conduit@xxxxxxxxxxxxxxxx;
> support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [Ncep.list.pmb-dataflow] Large lags on CONDUIT feed -
> started a week or so ago
>
> Hello Art,
>
> We will not be upgrading to version 6.13 on these systems as they are not
> robust enough to support the local logging inherent in the new version.
>
> I will check in with my team on if there are any further actions we can
> take to try and troubleshoot this issue, but I fear we may be at the limit
> of our ability to make this better.
>
> I’ll let you know tomorrow where we stand. Thanks.
> Anne
>
> On Mon, Mar 25, 2019 at 3:00 PM Person, Arthur A. <aap1@xxxxxxx> wrote:
>
> Carissa,
>
>
> Can you report any status on this inquiry?
>
>
> Thanks...          Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* Carissa Klemmer - NOAA Federal <carissa.l.klemmer@xxxxxxxx>
> *Sent:* Tuesday, March 12, 2019 8:30 AM
> *To:* Pete Pokrandt
> *Cc:* Person, Arthur A.; conduit@xxxxxxxxxxxxxxxx;
> support-conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow
> *Subject:* Re: Large lags on CONDUIT feed - started a week or so ago
>
> Hi Everyone
>
> I’ve added the Dataflow team email to the thread. I haven’t heard that any
> changes were made or that any issues were found. But the team can look
> today and see if we have any signifiers of overall slowness with anything .
>
> Dataflow, try taking a look at the new Citrix or VM troubleshooting tools
> if there are any abnormal signatures that may explain this.
>
> On Monday, March 11, 2019, Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> Art,
>
> I don't know if NCEP ever figured anything out, but I've been able to keep
> my latencies reasonable (300-600s max, mostly during the 12 UTC model
> suite) by splitting my CONDUIT request 10 ways, instead of the 5 that I had
> been doing, or in a single request. Maybe give that a try and see if it
> helps at all.
>
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262129771&sdata=bVTgXqm4bybswNIYttm3NeKaN5prjmUDwOpFXphUMCw%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* Person, Arthur A. <aap1@xxxxxxx>
> *Sent:* Monday, March 11, 2019 3:45 PM
> *To:* Holly Uhlenhake - NOAA Federal; Pete Pokrandt
> *Cc:* conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] Large lags on CONDUIT feed - started a week or
> so ago
>
>
> Holly,
>
>
> Was there any resolution to this on the NCEP end?  I'm still seeing
> terrible delays (1000-4000 seconds) receiving data from
> conduit.ncep.noaa.gov
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fconduit.ncep.noaa.gov&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262139772&sdata=g9nb3WC8rR%2F65E%2FwZg%2BAwl7JDuNM6OV6ty5YNNg0YQ8%3D&reserved=0>.
> It would be helpful to know if things are resolved at NCEP's end so I know
> whether to look further down the line.
>
>
> Thanks...           Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563 <callto:814-863-1563>
>
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Holly Uhlenhake - NOAA Federal <holly.uhlenhake@xxxxxxxx>
> *Sent:* Thursday, February 21, 2019 12:05 PM
> *To:* Pete Pokrandt
> *Cc:* conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] Large lags on CONDUIT feed - started a week or
> so ago
>
> Hi Pete,
>
> We'll take a look and see if we can figure out what might be going on.  We
> haven't done anything to try and address this yet, but based on your
> analysis I'm suspicious that it might be tied to a resource constraint on
> the VM or the blade it resides on.
>
> Thanks,
> Holly Uhlenhake
> Acting Dataflow Team Lead
>
> On Thu, Feb 21, 2019 at 11:32 AM Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> Just FYI, data is flowing, but the large lags continue.
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bidd.aos.wisc.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262139772&sdata=llapIFZjpMj%2F8T3WDF5rL8yqOJs6lCOg6z39xzhfZAQ%3D&reserved=0>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+conduit.unidata.ucar.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bconduit.unidata.ucar.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262149772&sdata=cDjmr2BO09PdgUDjkTaIMAVzNaBZG8zoI2DlLM34ffg%3D&reserved=0>
>
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262159781&sdata=hzjBmCU6jS8yHYLmO%2FItc68jCbz790Z6x7960AWFJcI%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> *Sent:* Wednesday, February 20, 2019 12:07 PM
> *To:* Carissa Klemmer - NOAA Federal
> *Cc:* conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] Large lags on CONDUIT feed - started a week or
> so ago
>
> Data is flowing again - picked up somewhere in the GEFS. Maybe CONDUIT
> server was restarted, or ldm on it? Lags are large (3000s+) but dropping
> slowly
>
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262159781&sdata=hzjBmCU6jS8yHYLmO%2FItc68jCbz790Z6x7960AWFJcI%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> *Sent:* Wednesday, February 20, 2019 11:56 AM
> *To:* Carissa Klemmer - NOAA Federal
> *Cc:* conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* Re: [conduit] Large lags on CONDUIT feed - started a week or
> so ago
>
> Just a quick follow-up - we started falling far enough behind (3600+ sec)
> that we are losing data. We got short files starting at 174h into the GFS
> run, and only got (incomplete) data through 207h.
>
> We have now not received any data on CONDUIT since 11:27 AM CST (1727 UTC)
> today (Wed Feb 20)
>
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262169786&sdata=M8%2BWo8v1Gdkfo5UseX%2FAZ3Q2T07nEJy3DFqDJvaqT8Q%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> ------------------------------
> *From:* conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx>
> on behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> *Sent:* Wednesday, February 20, 2019 11:28 AM
> *To:* Carissa Klemmer - NOAA Federal
> *Cc:* conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> *Subject:* [conduit] Large lags on CONDUIT feed - started a week or so ago
>
> Carissa,
>
> We have been feeding CONDUIT using a 5 way split feed direct from
> conduit.ncep.noaa.gov
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fconduit.ncep.noaa.gov&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262169786&sdata=pwQ8RllTCU%2BOL0uliFgC9G0V%2F6WK%2FhLaOn%2B2QL%2F1pcE%3D&reserved=0>,
> and it had been really good for some time, lags 30-60 seconds or less.
>
> However, the past week or so, we've been seeing some very large lags
> during each 6 hour model suite - Unidata is also seeing these - they are
> also feeding direct from conduit.ncep.noaa.gov
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fconduit.ncep.noaa.gov&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262179795&sdata=1xxCP%2FafYbMXdcLNR%2FIuy9Y0tBDO%2FKWbBYsAPjLov6w%3D&reserved=0>
> .
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bidd.aos.wisc.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262189808&sdata=qJfe%2FdGVmh8p3E%2BaMelwyjvLsxXOuodmdjYhfGM%2BbH0%3D&reserved=0>
>
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+conduit.unidata.ucar.edu
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Frtstats.unidata.ucar.edu%2Fcgi-bin%2Frtstats%2Fiddstats_nc%3FCONDUIT%2Bconduit.unidata.ucar.edu&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262189808&sdata=JFmzqxz80IM%2FSiNV1zl6QeWwcIH8miS8zTyFarxqS8M%3D&reserved=0>
>
>
> Any idea what's going on, or how we can find out?
>
> Thanks!
> Pete
>
>
>
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.weather.com%2Ftv%2Fshows%2Fwx-geeks%2Fvideo%2Fthe-incredible-shrinking-cold-pool&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262199813&sdata=6U6qIL0jgRoiQ742NlkHr344BFJqthlSVRGoKuyovQU%3D&reserved=0>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.unidata.ucar.edu%2Fmailing_lists%2F&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262199813&sdata=cTlTde6vBUC%2Bc%2BPnOlfuJsSbdma9urfLTGB5CXjxtxc%3D&reserved=0>
>
>
>
> --
> Carissa Klemmer
> NCEP Central Operations
> IDSB Branch Chief
> 301-683-3835
>
> _______________________________________________
> Ncep.list.pmb-dataflow mailing list
> Ncep.list.pmb-dataflow@xxxxxxxxxxxxxxxxxxxx
> https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.pmb-dataflow
> <https://nam01.safelinks.protection.outlook.com/?url=https%3A%2F%2Fwww.lstsrv.ncep.noaa.gov%2Fmailman%2Flistinfo%2Fncep.list.pmb-dataflow&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262209822&sdata=mbUF1EKDyPVMZlUnjn86XQ55KuTqbJIZYaDKwOFuy60%3D&reserved=0>
>
> --
> Anne Myckow
> Lead Dataflow Analyst
> NOAA/NCEP/NCO
> 301-683-3825
>
>
>
> --
> Anne Myckow
> Lead Dataflow Analyst
> NOAA/NCEP/NCO
> 301-683-3825
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.unidata.ucar.edu%2Fmailing_lists%2F&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262209822&sdata=wPUwExB77bt53ZiYByOJ40e%2FQAP1ByJYo3bDTbubgZI%3D&reserved=0>
>
>
>
> --
> ----
>
> Gilbert Sebenste
> Consulting Meteorologist
> AllisonHouse, LLC
> _______________________________________________
> Ncep.list.pmb-dataflow mailing list
> Ncep.list.pmb-dataflow@xxxxxxxxxxxxxxxxxxxx
> https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.pmb-dataflow
> <https://nam01.safelinks.protection.outlook.com/?url=https%3A%2F%2Fwww.lstsrv.ncep.noaa.gov%2Fmailman%2Flistinfo%2Fncep.list.pmb-dataflow&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262219827&sdata=wQavNwdnZST2BGlnWXTo0cM7yCZKfC89ELJVz6I9wTA%3D&reserved=0>
>
>
>
> --
> Derek Van Pelt
> DataFlow Analyst
> NOAA/NCEP/NCO
>
>
>
> --
> Carissa Klemmer
> NCEP Central Operations
> IDSB Branch Chief
> 301-683-3835
>
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/
> <https://nam01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.unidata.ucar.edu%2Fmailing_lists%2F&data=02%7C01%7Caap1%40psu.edu%7C03f4b8f758bb49bc0bb408d6bd00fc16%7C7cf48d453ddb4389a9c1c115526eb52e%7C0%7C0%7C636904209262229827&sdata=J4CywBaeCryhk3m%2F912pEFCmFpsdz%2BUVxwcMXguJXik%3D&reserved=0>
>
>
>
> --
> Derek Van Pelt
> DataFlow Analyst
> NOAA/NCEP/NCO
> --
> Misspelled straight from Derek's phone.
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/
>
> _______________________________________________
> Ncep.list.pmb-dataflow mailing list
> Ncep.list.pmb-dataflow@xxxxxxxxxxxxxxxxxxxx
> https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.pmb-dataflow
>
>
>
> --
> Dustin Sheffler
> NCEP Central Operations - Dataflow
> <%28301%29%20683-1400>5830 University Research Court, Rm 1030
> College Park, Maryland 20740
> Office: (301) 683-3827 <%28301%29%20683-1400>
> <%28301%29%20683-1400>
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/



--
Gerry Creager
NSSL/CIMMS
405.325.6371
++++++++++++++++++++++
*The way to get started is to quit talking and begin doing.*
*   Walt Disney*

PNG image

PNG image

PNG image

GIF image

PNG image

GIF image

GIF image

GIF image

  • 2019 messages navigation, sorted by:
    1. Thread
    2. Subject
    3. Author
    4. Date
    5. ↑ Table Of Contents
  • Search the conduit archives:
