Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT feed - started a week or so ago

  • To: "Person, Arthur A." <aap1@xxxxxxx>
  • Subject: Re: [conduit] [Ncep.list.pmb-dataflow] Large lags on CONDUIT feed - started a week or so ago
  • From: Derek VanPelt - NOAA Affiliate <derek.vanpelt@xxxxxxxx>
  • Date: Wed, 13 Mar 2019 13:04:42 -0400
Hi all,

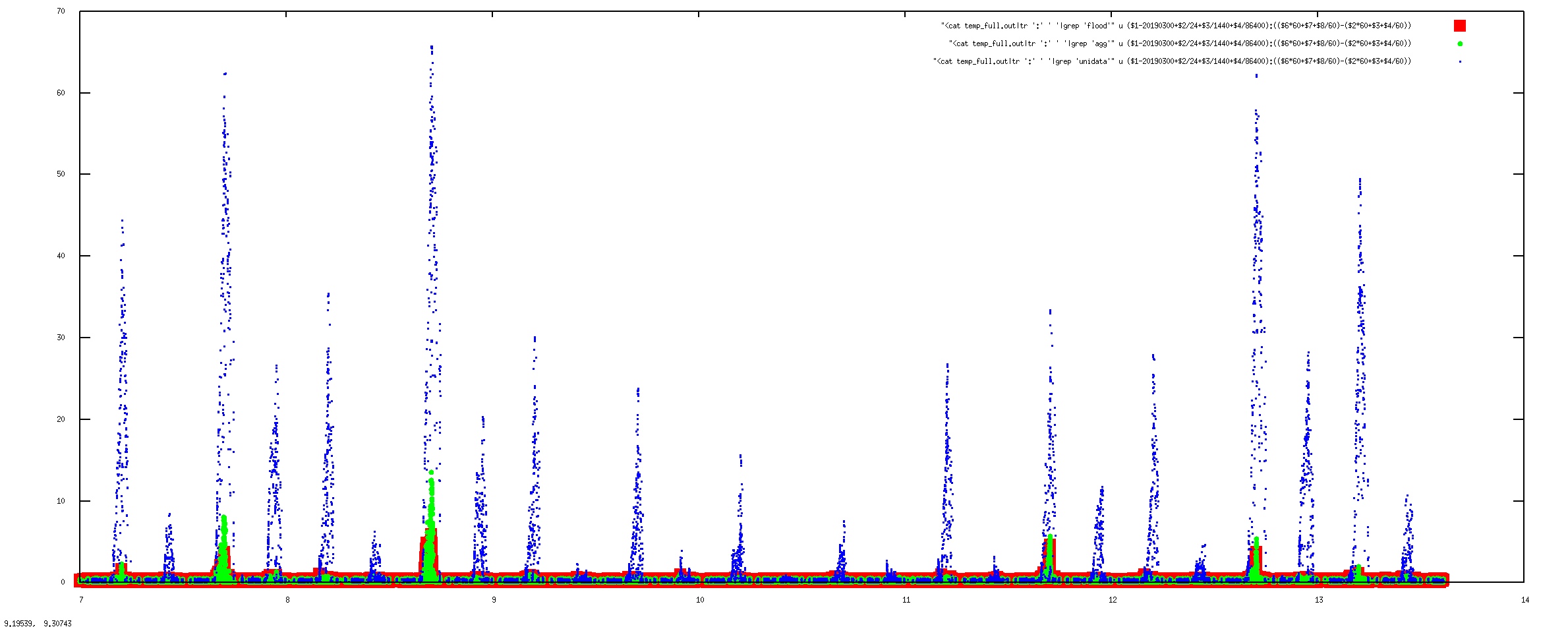

I have been reviewing the latency of the three conduit feeds this
morning (image attached for March 7 through 13, latency in minutes on
the y axis).  It appears that the Unidata feed has a lot of latency
(up to 50 minutes) showing up at model output hours (~5/11/17/23), but
the other two feeds are showing maximum latency of less than 6 or 7
minutes since the 9th.   I can see the "agg" server had  closer to a
15 minute latency on the 8th.

I can also verify at this point that each server is splitting the
request into 9 or 10 well balanced requests.

Putting all these together makes me think that the server here is not
the (main) issue, and I am encouraged that splitting the requests has
appeared to help.  Please let me know whether this matches your
experience, and how/if we proceed further?

It may be worth discussing whether crossfeeding each other may help you all .

Thank you ,

Derek







On Tue, Mar 12, 2019 at 4:18 PM Person, Arthur A. <aap1@xxxxxxx> wrote:
>
> With the conduit request split into 10 threads for this morning's 12Z data, I
> think there was some improvement, though not conclusive. Our delay peaked at
> about 2200 seconds which was much better than yesterday, but about the same
> as on the 10th.  However, I think the delays today at other sites were worse
> than the recent average, which is why I think it was an improvement.
>
>
> A traceroute shows our connection going through Chicago
> (rtsw.chic.net.internet2.edu) with an RTT of about 16 ms and then through
> Ashburn (rtsw.ashb.net.internet2.edu) with an RTT of about 32 ms, and finally
> into the Max Gigapop (clpk-core.maxgigapop.net) with an RTT of about 34 ms.
> Anyone follow a similar route to this that you could share some times on?
>
>
>                     Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563
>
>
>
> ________________________________
> From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on
> behalf of Person, Arthur A. <aap1@xxxxxxx>
> Sent: Tuesday, March 12, 2019 10:22 AM
> To: Carissa Klemmer - NOAA Federal; Pete Pokrandt
> Cc: conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow;
> support-conduit@xxxxxxxxxxxxxxxx
> Subject: Re: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
>
> Thanks Carissa.
>
>
> Pete, I was running a single request until recently, but split it into 5 a
> couple weeks ago with the results I reported below.  I'll try 10 and see if
> that helps further.  It's been my experience that when the latencies go bad,
> they are usually worse getting to us than other sites, not sure why.  Perhaps
> the route, or proximity to I2 backbone...?  Things had been great for months
> until approximately February 10th, give or take a few days.  Since then, the
> latencies have been terrible.
>
>
>                   Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563
>
>
>
> ________________________________
> From: Carissa Klemmer - NOAA Federal <carissa.l.klemmer@xxxxxxxx>
> Sent: Tuesday, March 12, 2019 8:30 AM
> To: Pete Pokrandt
> Cc: Person, Arthur A.; conduit@xxxxxxxxxxxxxxxx;
> support-conduit@xxxxxxxxxxxxxxxx; _NCEP.List.pmb-dataflow
> Subject: Re: Large lags on CONDUIT feed - started a week or so ago
>
> Hi Everyone
>
> Iâve added the Dataflow team email to the thread. I havenât heard that any
> changes were made or that any issues were found. But the team can look today
> and see if we have any signifiers of overall slowness with anything.
>
> Dataflow, try taking a look at the new Citrix or VM troubleshooting tools if
> there are any abnormal signatures that may explain this.
>
> On Monday, March 11, 2019, Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> Art,
>
> I don't know if NCEP ever figured anything out, but I've been able to keep my
> latencies reasonable (300-600s max, mostly during the 12 UTC model suite) by
> splitting my CONDUIT request 10 ways, instead of the 5 that I had been doing,
> or in a single request. Maybe give that a try and see if it helps at all.
>
> Pete
>
>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
>
> ________________________________
> From: Person, Arthur A. <aap1@xxxxxxx>
> Sent: Monday, March 11, 2019 3:45 PM
> To: Holly Uhlenhake - NOAA Federal; Pete Pokrandt
> Cc: conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> Subject: Re: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
>
> Holly,
>
>
> Was there any resolution to this on the NCEP end?  I'm still seeing terrible
> delays (1000-4000 seconds) receiving data from conduit.ncep.noaa.gov.  It
> would be helpful to know if things are resolved at NCEP's end so I know
> whether to look further down the line.
>
>
> Thanks...           Art
>
>
> Arthur A. Person
> Assistant Research Professor, System Administrator
> Penn State Department of Meteorology and Atmospheric Science
> email:  aap1@xxxxxxx, phone:  814-863-1563
>
>
>
> ________________________________
> From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on
> behalf of Holly Uhlenhake - NOAA Federal <holly.uhlenhake@xxxxxxxx>
> Sent: Thursday, February 21, 2019 12:05 PM
> To: Pete Pokrandt
> Cc: conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> Subject: Re: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
> Hi Pete,
>
> We'll take a look and see if we can figure out what might be going on.  We
> haven't done anything to try and address this yet, but based on your analysis
> I'm suspicious that it might be tied to a resource constraint on the VM or
> the blade it resides on.
>
> Thanks,
> Holly Uhlenhake
> Acting Dataflow Team Lead
>
> On Thu, Feb 21, 2019 at 11:32 AM Pete Pokrandt <poker@xxxxxxxxxxxx> wrote:
>
> Just FYI, data is flowing, but the large lags continue.
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+conduit.unidata.ucar.edu
>
> Pete
>
>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
>
> ________________________________
> From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on
> behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> Sent: Wednesday, February 20, 2019 12:07 PM
> To: Carissa Klemmer - NOAA Federal
> Cc: conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> Subject: Re: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
> Data is flowing again - picked up somewhere in the GEFS. Maybe CONDUIT server
> was restarted, or ldm on it? Lags are large (3000s+) but dropping slowly
>
> Pete
>
>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
>
> ________________________________
> From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on
> behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> Sent: Wednesday, February 20, 2019 11:56 AM
> To: Carissa Klemmer - NOAA Federal
> Cc: conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> Subject: Re: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
> Just a quick follow-up - we started falling far enough behind (3600+ sec)
> that we are losing data. We got short files starting at 174h into the GFS
> run, and only got (incomplete) data through 207h.
>
> We have now not received any data on CONDUIT since 11:27 AM CST (1727 UTC)
> today (Wed Feb 20)
>
> Pete
>
>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
>
> ________________________________
> From: conduit-bounces@xxxxxxxxxxxxxxxx <conduit-bounces@xxxxxxxxxxxxxxxx> on
> behalf of Pete Pokrandt <poker@xxxxxxxxxxxx>
> Sent: Wednesday, February 20, 2019 11:28 AM
> To: Carissa Klemmer - NOAA Federal
> Cc: conduit@xxxxxxxxxxxxxxxx; support-conduit@xxxxxxxxxxxxxxxx
> Subject: [conduit] Large lags on CONDUIT feed - started a week or so ago
>
> Carissa,
>
> We have been feeding CONDUIT using a 5 way split feed direct from
> conduit.ncep.noaa.gov, and it had been really good for some time, lags 30-60
> seconds or less.
>
> However, the past week or so, we've been seeing some very large lags during
> each 6 hour model suite - Unidata is also seeing these - they are also
> feeding direct from conduit.ncep.noaa.gov.
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+idd.aos.wisc.edu
>
> http://rtstats.unidata.ucar.edu/cgi-bin/rtstats/iddstats_nc?CONDUIT+conduit.unidata.ucar.edu
>
>
> Any idea what's going on, or how we can find out?
>
> Thanks!
> Pete
>
>
> --
> Pete Pokrandt - Systems Programmer
> UW-Madison Dept of Atmospheric and Oceanic Sciences
> 608-262-3086  - poker@xxxxxxxxxxxx
>
> _______________________________________________
> NOTE: All exchanges posted to Unidata maintained email lists are
> recorded in the Unidata inquiry tracking system and made publicly
> available through the web.  Users who post to any of the lists we
> maintain are reminded to remove any personal information that they
> do not want to be made public.
>
>
> conduit mailing list
> conduit@xxxxxxxxxxxxxxxx
> For list information or to unsubscribe, visit:
> http://www.unidata.ucar.edu/mailing_lists/
>
>
>
> --
> Carissa Klemmer
> NCEP Central Operations
> IDSB Branch Chief
> 301-683-3835
>
> _______________________________________________
> Ncep.list.pmb-dataflow mailing list
> Ncep.list.pmb-dataflow@xxxxxxxxxxxxxxxxxxxx
> https://www.lstsrv.ncep.noaa.gov/mailman/listinfo/ncep.list.pmb-dataflow



--
Derek Van Pelt
DataFlow Analyst
NOAA/NCEP/NCO

Attachment: conduit_latency.png
Description: PNG image
